Arcade Button Plate
- 11 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

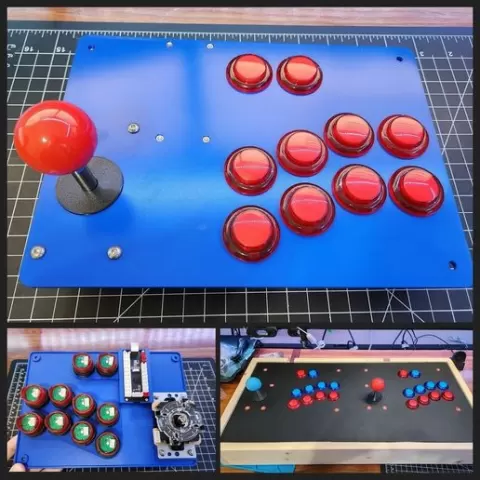

First step in building my arcade cabinet is getting the buttons set up. This is set up to hold 2 rows of 4 buttons + Start/Select, a joystick, and the controller board. If you want to transfer the holes to a board it includes a router template and washers. The controller board uses M2.5 nuts/bolts (M2 should probably fit too). The joystick and board itself use M4 nuts/bolts, if you don't countersink the holes I recommend buttonhead cap screws and the washers. This is the kit I used, but they all look about the same: https://www.amazon.com/dp/B07JFXQSM5
About this model
Arcade Button Plate is a free 3D model in the Other category, shared by the Cults3D community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Cults3D. Use the button above to open the original page and download it.
