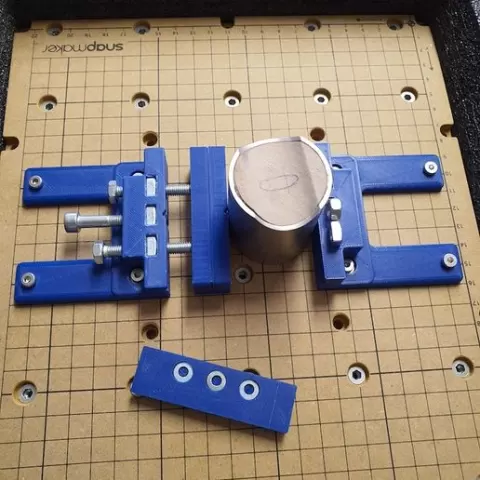

Vise version 2.1 - Snapmaker A250

Description

Vise version 2.1 Fixing points on worktop: 50x50mm (M4) A250 both base bodies are identical and can be fitted with square nuts (M6). The inlets for these are continuous so that the nuts can be easily replaced. The square nuts must be pressed in slightly. Otherwise, rework the inlets a bit. Hex nuts don't fit, but could be used with rework as well. On the screw head side, the holes are smaller, so that a thread can still be cut there !!!! Attention !!! From the side of the clamping jaw after the nut is inserted, so that the thread runs according to the nut. The thread in the base body serves to prevent the screws from simply loosening themselves. On the clamping jaw side, M6 easily fits through. Whether 1, 2, 3 screws are used ... everyone must decide for themselves.
